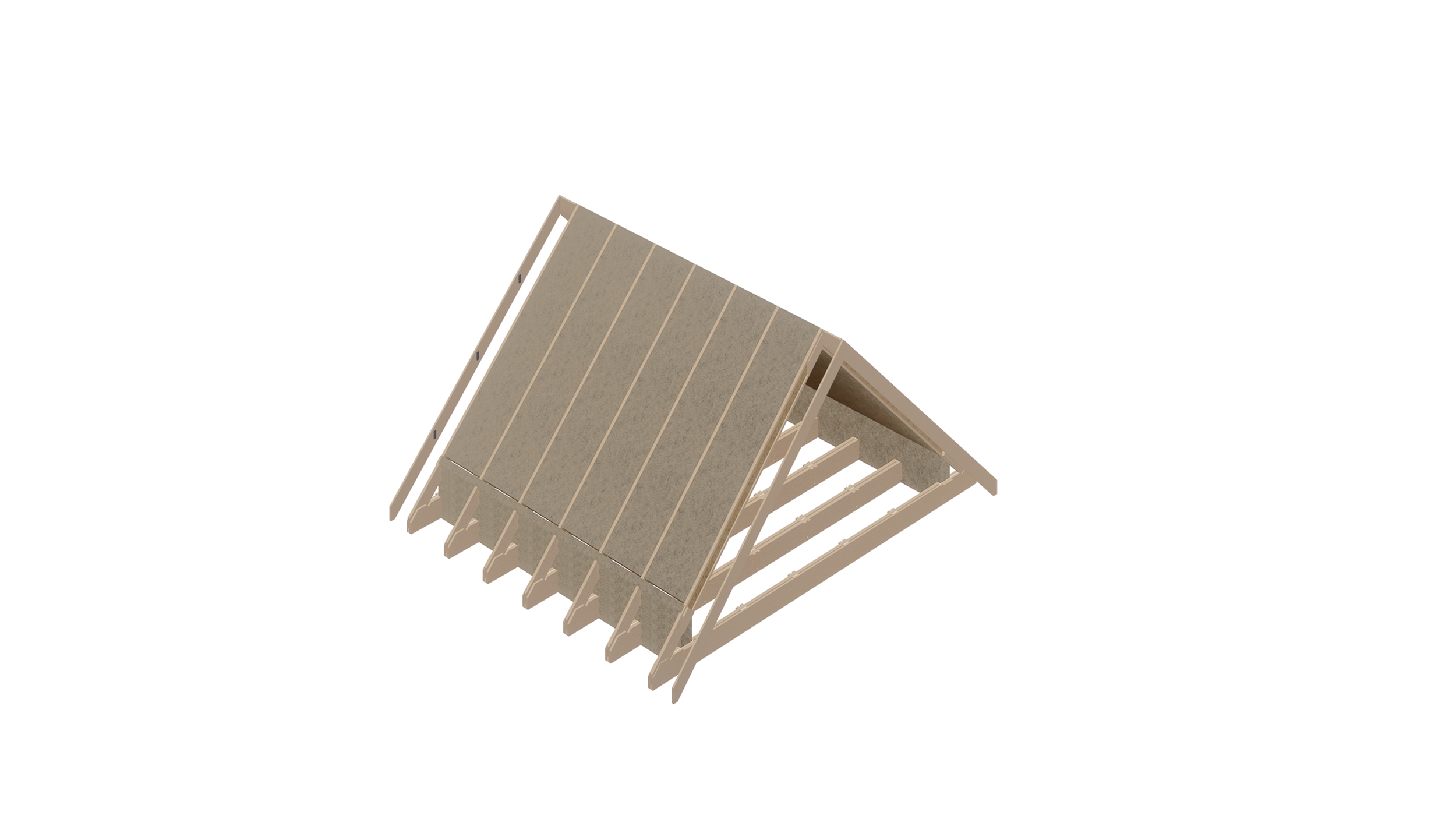

Gable roof - insulation

Rock wool is used for the roof insulation of type A, which is easy to install in three layers. Inwards closed by a 15 mm OSB. Or by an ESB with a moist-regulating vapour barrier.

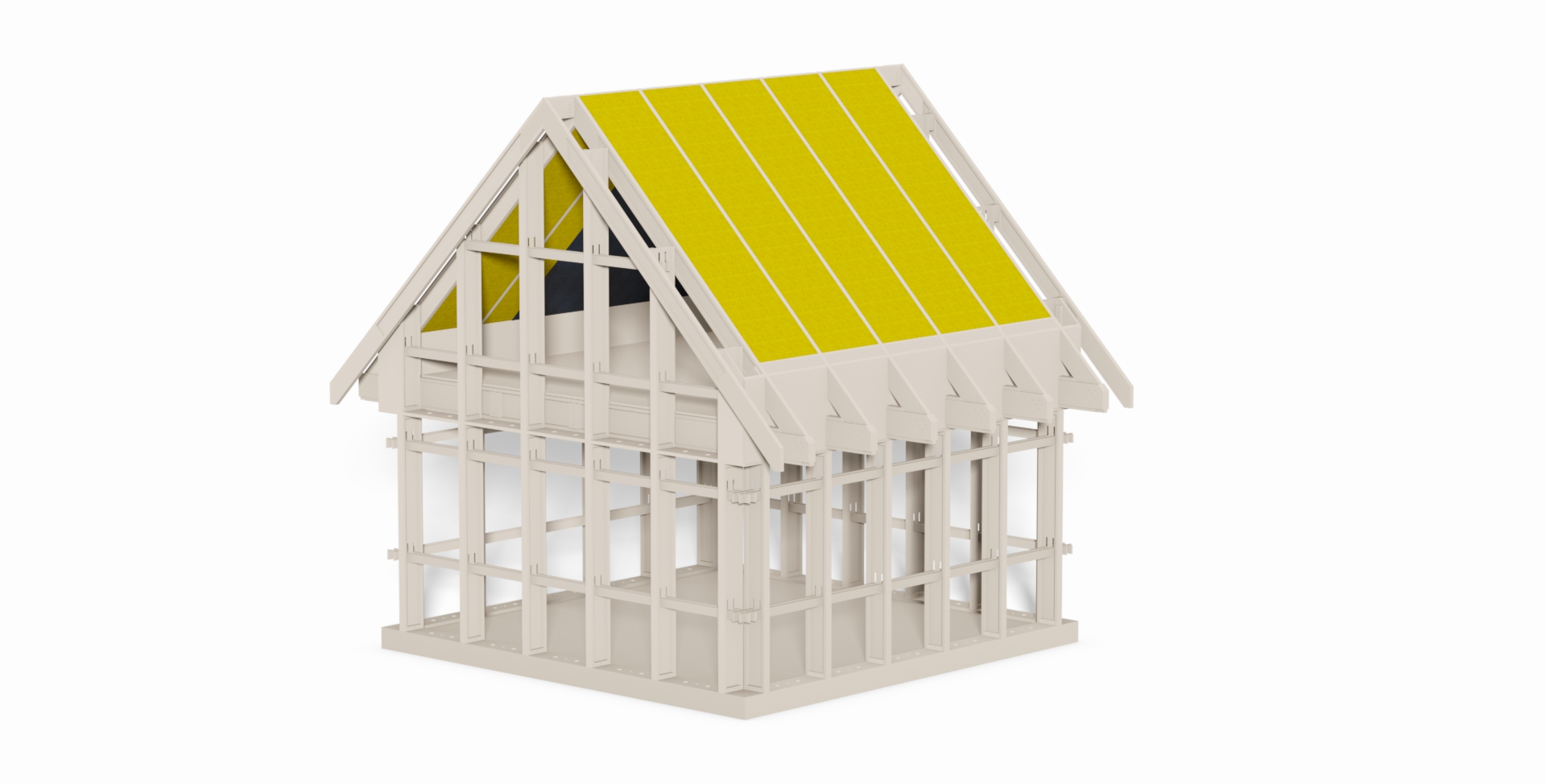

Gable roof - outer layer

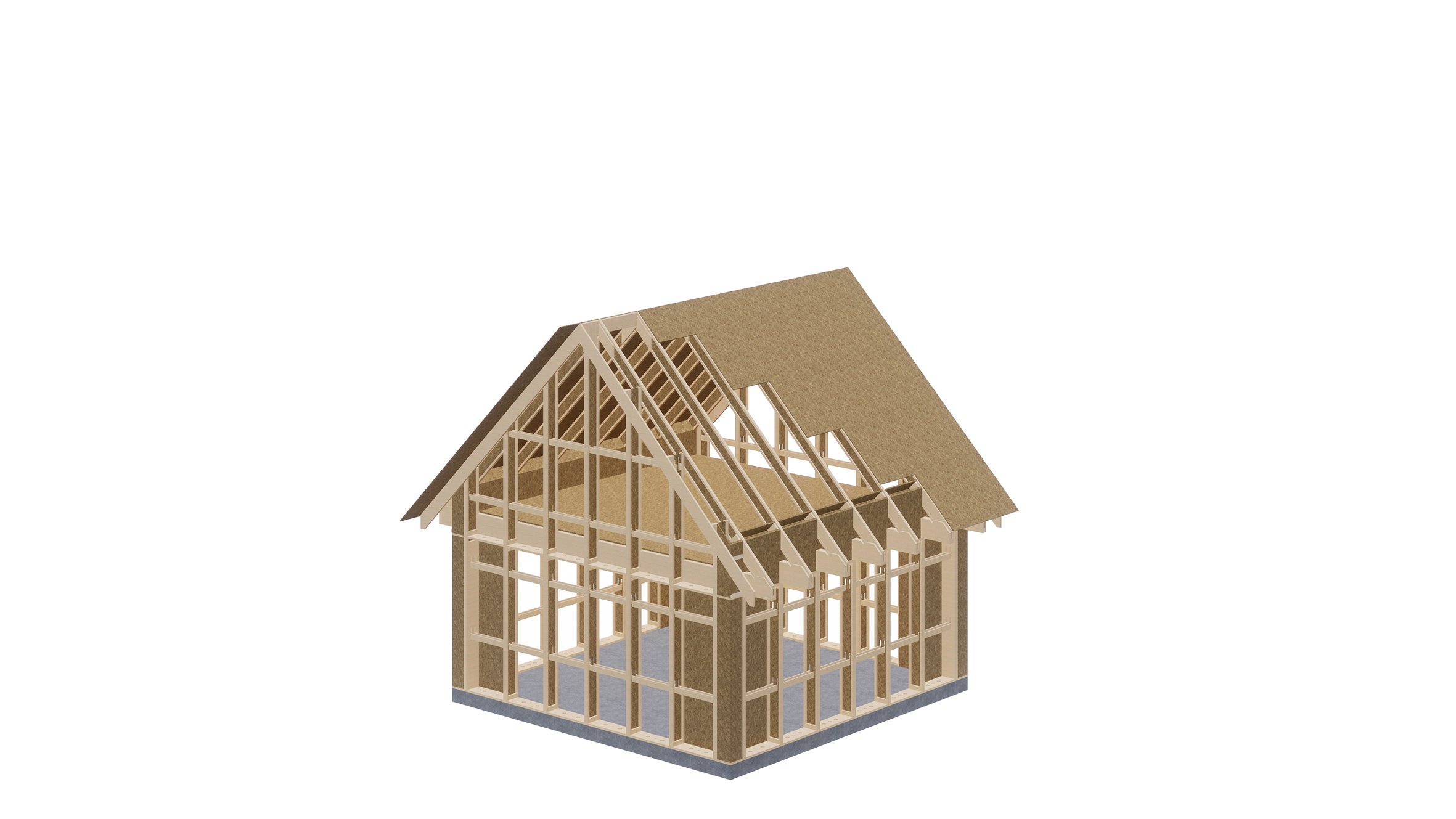

The rafters are covered with an AGEPAN DWD-board or an EGGER DHF-board - these boards work both as a temporay roofing for weather protection and as structural layer.

Roof drainage

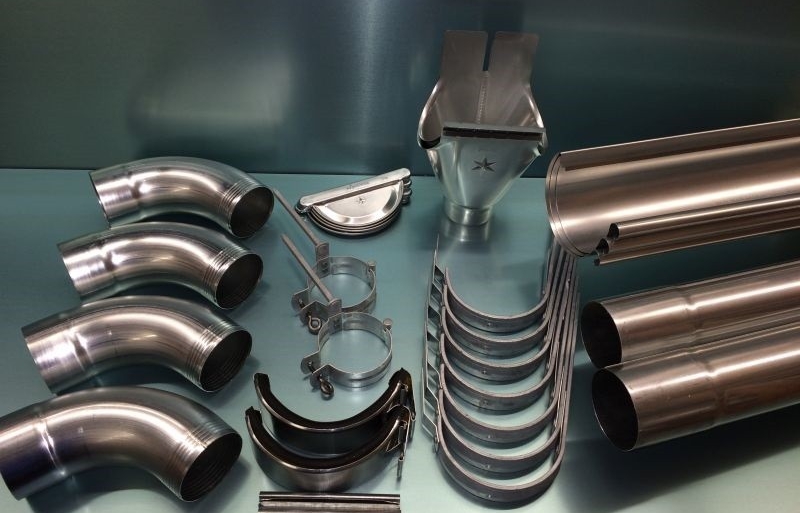

The roof gutter package consisting of:
Half round trough from powder-coated steel, 2 fall pipes and bends, channel connectors, as well as all necessary materials for the assembly.

Roof covering

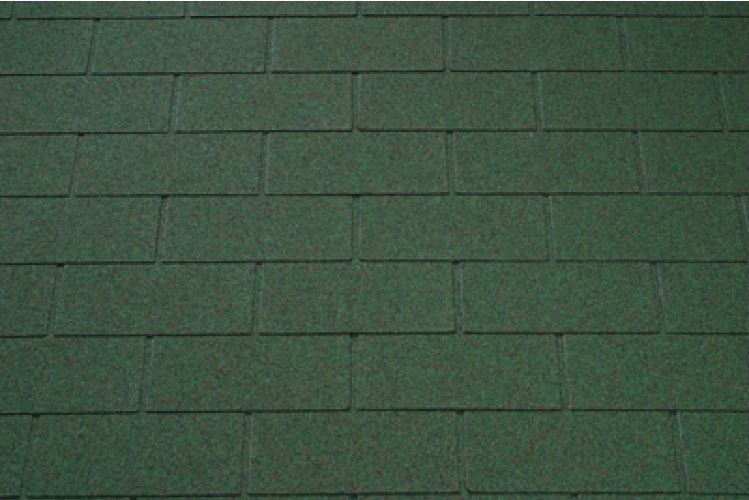

For roofing, we offer high-quality polymer bitumen shingles from ISOLA for easy installation. These come with an additional OSB layer with a ventilation spacing underneath and are supplied with all required fasteners as well.

Of Course all other roofing materials are also possible. Ask your regional roofing company.

Note:

If roof tiles are desired as covering, this is possible in the snow load zones 1-2. For the Model A+, in this case reinforced rafter versions are used.

A surface weight of 60 kg / m² should not be exceeded.
